Cone Crusher
Feed Size : 65mm
Capacity : 40t/h
Application Fields : Apply to metallurgy, construction, road building, chemical and silicate industry raw material crushing
Introduction : Cone crusher broken than large, high efficiency, low energy consumption, product size uniform, suitable for crushing and finely various kinds of ores and rocks.
Cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc.
Stucture of Cone Crusher:
Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
Working Principle of Cone Crusher:

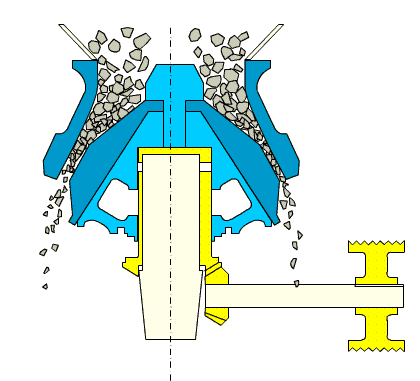

During operation, the motor of the cone crusher drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Main technical parameters of Cone Crusher:
|
Model |
Crushing awl diameter |
Max feeding size |
Outlet width |
Capacity
(t/h) |
Motor power(kw) |
Swing fre. of main shaft |
Weight(t) |
Overall dimension | |
|
Type | |||||||||
|
PYB |
600 |
600 |
65 |
12-25 |
40 |
30 |
356 |
5 |
2234*1370*1675 |
|
PYD |
35 |
3-13 |
12-23 |
5.5 |
2234*1370*1675 | ||||
|
PYB |
900 |
900 |
115 |
15-50 |
50-90 |
55 |
333 |
11.2 |
2692*1640*2350 |
|
PYZ |
60 |
5-20 |
20-65 |
11.2 |
2692*1640*2350 | ||||
|
PYD |
50 |
3-13 |
15-50 |
11.3 |
2692*1640*2350 | ||||
|
PYB |
1200 |
1200 |
145 |
20-50 |
110-168 |
110 |
300 |
24.7 |
2790*1878*2844 |
|
PYZ |
100 |
8-25 |
42-135 |
25 |
2790*1878*2844 | ||||
|
PYD |
50 |
3-15 |
18-105 |
25.3 |
2790*1878*2844 | ||||
|
PYB |
1750 |
1750 |
215 |
25-50 |
280-480 |
160 |
245 |
50.3 |
3910*2894*3809 |
|
PYZ |
185 |
10-30 |
115-320 |
50.3 |
3910*2894*3809 | ||||
|
PYD |
85 |
5-13 |
75-230 |
50.2 |
3910*2894*3809 | ||||
|
PYB |
2200 |
2200 |
300 |
30-60 |
59-1000 |
280-260 |
220 |
80 |
4622*3302*4470 |
|
PYZ |
230 |
10-30 |
200-580 |
80 |
4622*3302*4470 | ||||
|
PYD |
100 |
5-15 |
120-340 |
81.4 |
4622*3302*4470 | ||||
