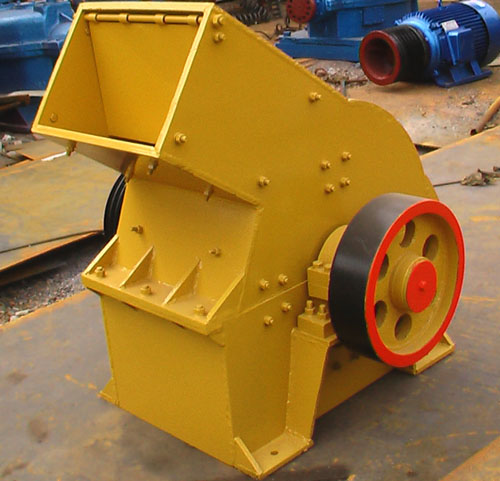

Hammer Crusher
Feed Size : <=100mm
Capacity : 5-10t/h
Application Fields : Is widely used in dressing plant, refractory materials plant, cement, glass and other industrial departments in the fine grinding medium hardness materials
Introduction : Hammer crusher is directly to the biggest size is 600-1800 mm material crushing to 25 or under 25 mm for a period of broken with crusher.
Our hammer crusher (hammer mill) series products are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. the crushing compressive strength of materials should not be in excess of 150Mpa. The hammer crusher is mainly used in such industries as cement, coal separation, electricity generation, building materials and compound fertilizer, etc. The hammer crusher can crush materials with different sizes into equal particle, which favors the next procedure. The hammer crusher has the advantages of reliable mechanical structure, high productivity and favorable applicability.
Features and functions of Hammer Crusher:
Hammer Crusher has the advantages of highly structured, reasonable structure, convenient installation, simple operation especially for the cement industry.
It has a special structure features of big crushing ratio for crushing material.
Hammer Crusher is seperated into two types: common hammer crusher, ring hammer crusher. The ring hammer crusher is widely used in coal and coke industry.
Main technical parameters of Hammer Crusher:
|
Model
|
Feeding
size
(mm) |
Dischaging size
(mm)
|
Capacity(t/h)
|
Motor
power
(Kw) |
Weight
(Kg) |
|
PC400*300
|
<=100
|
<=10
|
5-10
|
11
|
800
|
|
PC600*400
|
<=120
|
<=15
|
10-25
|
18.5
|
1500
|
|
PC800*600
|
<=120
|
<=15
|
20-35
|
55
|
3100
|
|
PC1000*800
|
<=200
|
<=13
|
20-40
|
115
|
7900
|
|
PC1000*1000
|
<=200
|
<=15
|
30-80
|
132
|
8650
|
|
PC1300*1200
|
<=250
|
<=19
|
80-200
|
240
|
13600
|
Main technical parameters of Ring Hammer Crusher:
|
Model
|
Feeding Size(mm)
|
Discharging size(mm)
|
Capacity(t/h)
|
Rotor speed(r/min)
|
Motor
|
Weight(t)
|
|
|
Model
|
Power
|
||||||
|
PCH0402
|
<=200
|
<=30
|
8-12
|
960
|
Y132M2-6
|
5.5
|
0.8
|
|
PCH0404
|
<=200
|
<=30
|
16-25
|
970
|
Y160L-6
|
11
|
1.05
|
|
PCH0604
|
<=200
|
<=30
|
22-33
|
970
|
Y180L-6
|
15
|
1.43
|
|
PCH0606
|
<=200
|
<=30
|
30-60
|
980
|
Y225M-6
|
30
|
1.77
|
|
PCH0808
|
<=200
|
<=30
|
70-105
|
740
|
Y280M-8
|
45
|
3.6
|
|
PCH1010
|
<=200
|
<=30
|
160-200
|
740
|
Y315M2-8
|
90
|
6.1
|
|
PCH1016
|
<=300
|
<=30
|
300-350
|
740
|
JS-128-8
|
155
|
9.2
|
|
PCH1216
|
<=350
|
<=30
|
620-800
|
740
|
Y450-8
|
355
|
15.0
|
|
PCH1616
|
<=400
|
<=30
|
700-900
|
740
|
YKK5001-8
|
400
|
19.3
|
