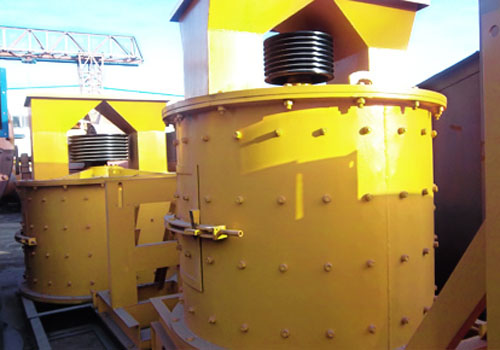

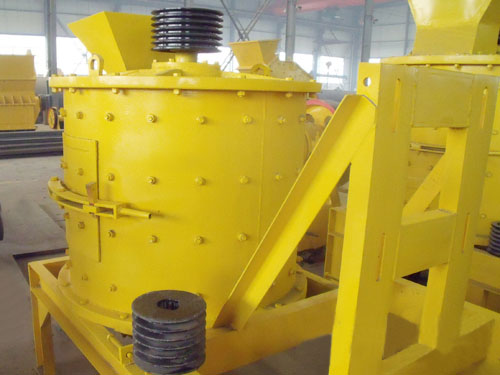

Vertical Compound Crusher

Feed Size : <100mm

Capacity : 10-20t/h

Application Fields : Widely used in all kinds of ores, cement, refractory materials, bauxite clinker, carborundum, glass raw materials such as hard, hard materials, finely in the field.

Introduction : Vertical Compound Crusher is mainly used for medium and small pieces of cement raw meal, clinker, used in building sand, iron ore, sandstone, gypsum, coal gangue, lump coal, and other crushing medium hard ores.

Offical Email : [email protected]
Skype : dongfanggroup

       The vertical compound crusher is widely used for crushing various materials, such as stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, limestone, quartzite and alloys.

       Features of Compound Crusher:

        (1) The structure is reasonable and simple and the operation cost is low.

        (2) The crushing rate is high.

        (3) It has the function of grinding and coarse grinding.

        (4) The material humidity has less effect on the machine. And the material humidity can get to be about 8%.

        (5) The dust pollution is less.

        (6) It's applicable to crush hard and medium hard material.

        (7) The product shape is cube and bulk density is bigger. Iron pollution is less.

        (8) The impeller's abrasion is small and the maintenance is convenient.

       Working principle of Compound Crusher:

       The materials drop into the high-speed rotating impeller vertically from the head of the machine and are impacted and grinded under the effect of high-speed centrifugal force with other part materials which distribute with umbelliform shape around the impeller. After impacting each other, the materials impact and rub each other between the impeller and machine casing, then they are discharged from the under-part forming a closed-circuit cycle. The required product granularity is controlled by the screen equipment.

       Main technical parameters of Compound Crusher:

Model
Feeding size
(mm)
discharging size
(mm)
Capacity
(t/h)
Rotating speed of main shaft
(r/min)
Motor power
(kw)
Overall dimension
(mm)
PFL-800
<100
<3-5 60-90%
10-20
934
22
2100*1200*1700
PFL-1000
<120
<3-5 60-90%
20-40
769
37
2600*1400*1900
PFL-1250
<150
<3-5 60-90%
40-70
530
75
2800*1600*2100
PFL-1500
<180
<3-5 60-90%
70-100
495
132
3100*1900*2200
PFL-1750
<200
<3-5 60-90%
130-190
424
160
3710*2360*2390
PFL-2000
<220
<3-5 60-90%
100-160
370
185
4100*2660*2620
