Drum Granulator

Feed Size : ø1.2*3.5

Capacity : -3t/h

Application Fields : Taking engineering plastics as inner lining, the material can prevent adhering to the shell.

Introduction : Granulation rate can reach 70%, with less return material. With small size, the return material can be reused for granulation.

Offical Email : [email protected]
Skype : dongfanggroup

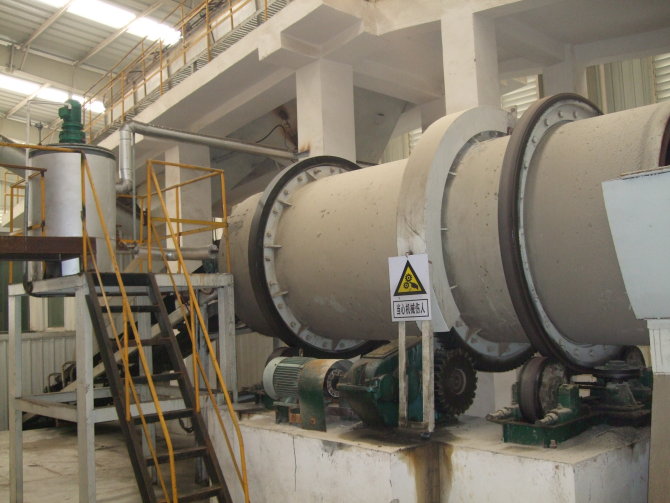

       When drum granulator works, the inner shell is filled by steam, ammonia gas or phosphoric acid or nitrogen solution, phosphmidon slurry, heavy calcium slurry, and then compound fertilizer is granulated under the chemical reaction and heat supply. Or it can add some water to finish the cold granulation. The material to be granulated can rotate along the shell's rotation, and be conglomerated into pellet under certain humidity and temperature.

       Drum granulator features:

       1. Granulation rate can reach 70%, with less return material. With small size, the return material can be reused for granulation.

       2. Heated by steam, the material temperature is increased with less water, so as to enhance drying efficiency.

       3. Taking engineering plastics as inner lining, the material can prevent adhering to the shell, and it can guarantee corrision resistance and keep warm.

       4.Large capacity, low energy consumption and less maintenance cost.

       Main technical parameters of drum granulator:

Model
Shell
Capacity
Inner rubber type
Motor
 Dimension     (L*W*H)
Inner diamter
Length
Inclination single
Rotation speed
Model
Power
m
mm
mm
(o)
r/min
t/h
kw
mm
ø1.2*3.5
1200
3500
2.5
18.07
-3
Mould lining type or rubber lining type
Y160M-6
7.5
6260*3070*2129
ø1.4*4
1400
4000
15.05
-5
Y160M-4
1
4600*2810*2300
ø1.6*4
1600
3800
12
-7
Y160L-6
11
5190*3055*3100
ø1.8*6
1800
6000
12.39
-10
Y200L1-6
18.5
8000*3335*3350
ø2.0*7
2000
7000
10.8
-14
Y250M-8
30
11000*3900*3750
ø2.0*8
2000
8000
10.8
-15
Y250M-8
30
12000*3900*3750
ø2.0*10
2000
10000
10.8
-16
Y250M-8
30
14000*3900*3750
ø2.4*10
2400
10000
9-10.9
-30
YR280M-4
75
14000*4742*4332
