Ring die wood pellet production line

Feed Size : <5mm

Capacity : 0.3-3.5t/h

Application Fields : This machinery can make sawdust,wood chips, wood logs, rice husk, sunflower seed shells, peanut shells, and other kinds of agricultural wastes

Introduction : Dongfang Ring die wood pellet machine belongs to pellet fuel processing equipment.Welcome to choose Zhengzhou dongfang heavy Machinery

Offical Email : [email protected]
Skype : dongfanggroup

       1. Ring Die Wood Pellet Machine Introduction

       Dongfang Ring die wood pellet machine belongs to pellet fuel processing equipment. After the materials like sawdust,wood chips, wood logs, rice husk, sunflower seed shells, peanut shells, and other kinds of agricultural wastes are first ground by a hammer mill and dried to a moisture content about 15% , they can be processed by our dongfang ring die pellet machine into solid biomass pellets. The final wood pellets can be used in stoves for home heating and industrial boilers and large power plants. Besides, the pellets are also widely used for animal bedding.

       2. Wood Pellets Benefits

       a. Compared with raw wood shavings, there is less ashes and emission after combustion, carbon neutral without exacerbating the global warming.

       b. Raw materials are easy to get. Wood materials, agricultural byproducts, even wood wastes from wood processing factory can be utilized to make wood pellets.

       c. Easy to ignite due to low moisture content. Efficient burning and high heat output.

       d. Can be used in a lot of appliances such as stoves, furnaces,boilers and other heating systems.

       E. Highly compressed, regular and uniform shape ensure easy storage and transportation, especially convenient for automated heating system.

       3. Dongfang ISO2008 and CE Ring Die Wood Pellet machine Features

       a. Adopt high precision gear drive. Output is 20% larger than that of belt drive.

       b. Advanced bearing and oil seal guarantee a efficient and stable working process.

       C. Feeding device adopts frequency conversion motor, ensuring continuous and even feeding.

       d. Different hole diameters make various sizes of pellets possible.

       e. Flexible coupling shaft with novel structure ensures a stable pelletizing process and low breakdown possibility.

       F. Permanent magnet device can remove impurities in the pelletizing process.

       4. Ring Die Wood Pellet Machine Working Principle

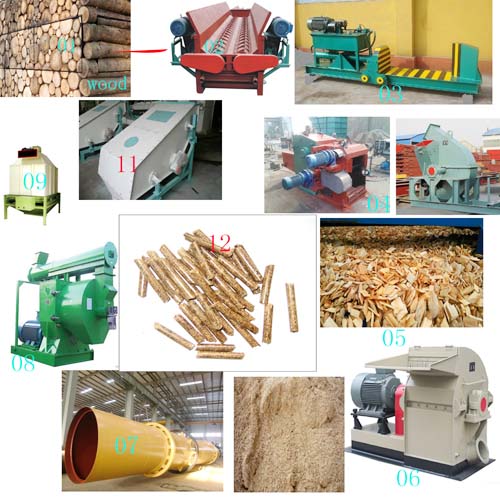

       After grinding and drying process, the materials will be sent into feeding device and mixed in the conditioner. Then they are forced into the pelletizing chamber by the imperative feeder. In the chamber, materials are squeezed between the rollers and die to form into cylinder shape pellets. As they are extruded, cutting knives will cut the pellets into specified size.
