Batch Ball Mill
Feed Size : 910*1120
Capacity : 0.2t/time
Application Fields : Ceramic ball mill is replacing the spring cone crusher in mine construction industry today and update the general hydraulic cone crusher is the latest generation of products
Introduction : Batch ball mill is also called ceramic ball mill, with drying work and weting working by batch. It is used for fine grinding of feldspar, quartz, clay, ore, etc

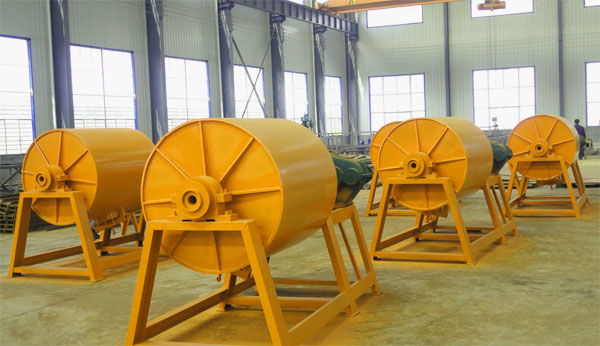

Batch ball mill is also called ceramic ball mill, with drying work and weting working by batch. It is used for fine grinding of feldspar, quartz, clay, ore, etc.
Batch ball mill (ceramic ball mill) is mainly used for mixing, milling of the materials. It works with less energy but produces high fineness product. It has two types, wet mills and dry mills. The machine could use different lining board according to product requirement to satisfy different customer��s requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is divided into integral type and freestanding type. Advantages of the machine are lower investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc. It is suitable for mixing and milling of general and special materials. Users can choose the proper model, lining board and media as per the factors, such as: material��s specific gravity and hardness, as well as output, etc.
Main Technical Parameters of Batch Ball Mill (Ceramic Ball Mill):
|
Model |
Capacity (t/time) |
Rotation speed(r/min) |
Motor power(kw) |
Weight (t) |
|
TCQ910*1120 |
0.2 |
36 |
5.5-11 |
2.6 |
|
TCQ1200*1400 |
0.5 |
32 |
11-18.5 |
4.3 |
|
TCQ1500*1800 |
1 |
28 |
15-22 |
6.5 |
|
TCQ1800*2100 |
1.5 |
26 |
18.5-30 |
8.8 |
|
TCQ2100*2100 |
2.5 |
22 |
22-37 |
13 |
|
TCQ2200*2400 |
3 |
20 |
28-45 |
15 |
|
TCQ2500*2900 |
5 |
16 |
37-55 |
19 |
|
TCQ2800*3700 |
8 |
14.5 |
55-75 |
26 |
|
TCQ3000*3700 |
10 |
14 |
75-90 |
32 |
